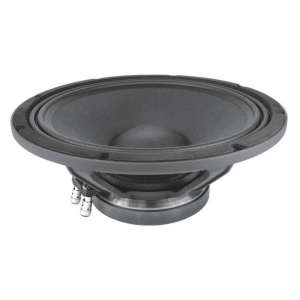

Vand Difuzor FaitalPRO 18HP1010

Specificatii pentru Difuzor FaitalPRO 18HP1010 :


  Nominal Diameter 460 mm (18 in)
  Overall Diameter 460 mm (18.11 in)
  Bolt Circle Diameter 440 mm (17.32 in)
  Baffle Cutout Diameter 421 mm (16.57 in)
  Depth 203.5 mm (8.01 in)
  Flange and Gasket Thickness 13.7 mm (0.54 in)
  Net Weight 10.1 Kg (22.35 lb)
  Shipping Box
  (Single Carton Box) 503x500x258 mm (19.80x19.68x10.16 in)
  Shipping Weight 11.1 Kg (24.47 lb)
  Nominal Impedance 8 Ohm
  Minimum Impedance 6.7 Ohm
  AES Power Handling *** 1000 W
  Maximum Power Handling **** 2000 W
  Sensitivity (1W/1m) 98 dB
  Frequency Range 35÷2000 Hz
  Voice Coil Diameter 100 mm (4 in)
  Winding Material Cu
  Former Material Glass Fiber
  Winding Depth 23 mm (0.91 in)
  Magnetic Gap Depth 10.5 mm (0.41 in)
  Flux Density 1.05 T
  Magnet Ferrite Ring
  Demodulation No
  Suspension ***** Triple Roll

  *** Foarte important : Din garantie nu fac parte sistemul mobil si bobina difuzorului.
