Vand sistem de racire industiral

Vand sistem de racire industiral 100 000 euro , contact. 0728 904 437.
  informati :

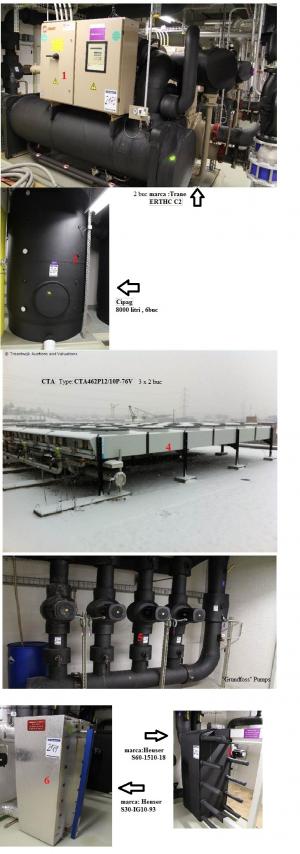

  Chiller

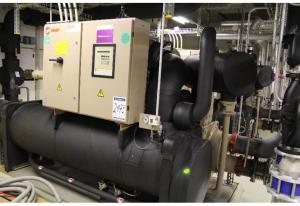

   1. 2 buc : Trane Type : ERTHC C2
  Year:2000 Serial Number:EKK 2984
  Chiller, capacity max. 209 kW, cooling liquid 134a, max.working pressure 16 bar, reservoir content 307 l, max.pressure 16 bar, steamer 734 kW, 90 m3/h, condensator 939 kW, 146.16 m3/h.
   2. 6 buc Rezervoare 8000 litri Cipag.
   6. Heuser Type:S30-IG10-93
  Heat exchanger, capacity 500 kW, primary side 46/36°c 43m3/h, secondary side 30/42°C, 36 m3/h .
   3. Heuser Type: S60-1510-18
  Heat exchanger, freecooling 700 kW, primary side 4/7.4°C, 178m3/h, secondary side 12/5°C, 87 m3/h
   4. 3x2 buc CTA Type:CTA462P12/10P-76V
  Heat exchanger, exchanging capacity 328 kW, air volume 128'000 m3/h each, ventilators 12 pcs. (4000 rpm) each, with 1 frequency converter
   5.Lot with +/- 12 "Grundfoss" pumps, manual gate valve and complete tubing of cooling circulation
