DESCRIERE
Primul proprietar, functionare ireprosabila. Folosite ocazional.
Cateva detalii:
Transducer technology

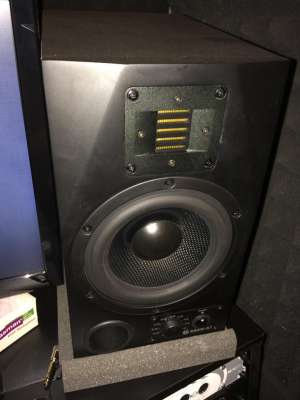

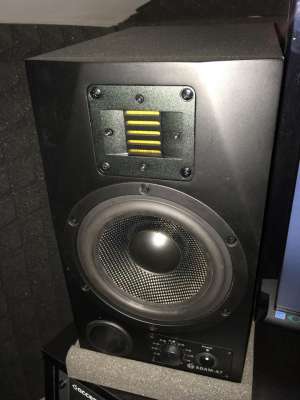

The A7 is an active two way nearfield monitor matching the ART tweeter with a state of the art 6.5“ Rohacell/carbon fiber woofer. This new cone material combines high rigidity and high internal damping with low weight. The resulting combination produces an extremely accurate monitor with all the clarity, detail and spectacular imaging traditionally associated with the ADAM name.
Amplification and front panel
The A7 is powered by two 50 W amplifiers (one per driver). The front panel features both a power switch and volume control.
Cabinet, enclosure and connectors

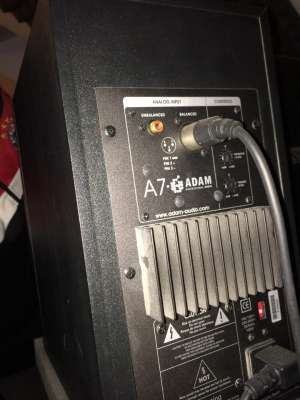

The A7’s upper corners of the cabinet are chamfered to minimize reflections. The A7 enclosure is magnetically shielded. The unit also features both balanced (XLR) and unbalanced (RCA) input connectors, allowing it to be used in almost any audio application.
Woofer
Number 1
Basket Ø 7" (175 mm)
Cone material Carbon sandwich
Tweeter
Number 1
Type ART
Diaphragm area 4.5 inch² (2830 mm²)
Equiv. Diaphragm Ø 2.5" (60 mm)
Velocity transform ratio 4:1
Built-in Amplifiers
Woofer 1
Type A/B
Amp. power RMS / music 50 W / 80 W
Tweeter 1
Type A/B
Amp. power RMS / music 50 W / 80 W
Control panel
Input Sensitivity -∞ to +10 dB
High Shelf EQ > 6 kHz ±6 dB
Low Shelf EQ < 150 Hz ±6 dB
Tweeter gain ±4 dB
Input connectors
Analog XLR / RCA
General data
Panel Rear
Frequency response 46 Hz - 35 kHz
THD > 80 Hz ≤1.5 %
Max SPL with sine wave acoustic 100Hz to 3kHz at 1m ≥105 dB
Max SPL per pair at 1m ≥115 dB
Crossover frequencies 2200 Hz
Input impedance 10 KOhm
Weight 17.6 lb (8 kg)
Magnetically shielded Yes
Height x Width x Depth 13" (330 mm) x 7.5" (185 mm) x 11" (280 mm)
9 Apr 2014 · Valabilit. 9 Apr 2015 · Afisari :
