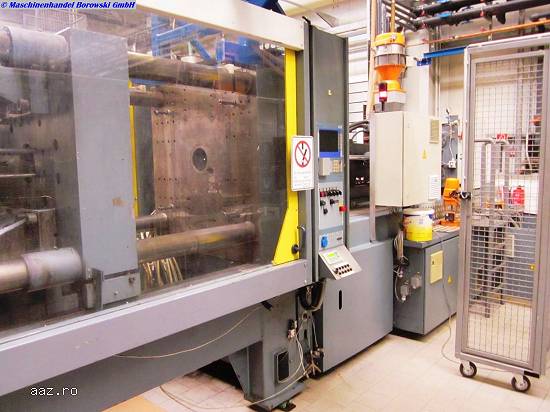

Vand masina de injectat mase plastice Battenfeld BA 4500-4500 BK UNILOG 4000

machine-no.: 501981
  manufacturer: BATTENFELD
  Typ: BA 4500-4500 BK UNILOG 4000
  year of construction: 1997

  clamping force: 4500 kN
  distance between tie bars h: 800 mm
  distance between tie bars v: 8000 mm
  size of mould plates h: 1120 mm
  size of mould plates v: 1120 mm
  min. mould height: 300 mm
  max. mould height: 770 mm
  opening stroke: 760 mm
  max. opening daylight: 1530 mm

  screw diameter 100 mm
  injection pressure: 1344 bar
  shot volume: 3338ccm

  measures of machine lxbxh: 9.6m x 1.84m x 2.31m
  total weight: 21700KG

  • Anit vibration mounts
  • Machine without Handling
  • increased oil cooler
  • machine incl. water flow regulator
  • machine without material hopper
  • core pulling hydr. 1x
  • air valve fixed WAP
  • electric interface for handling units according to Euromap 12
  • CEE-socket 32A
  • interface for Airmould
  • interface for ejector plates safety
  • interface EUROMAP 13
  • screen text german
  Maschinenhandel Borowski GmbH, Germany
  *****
