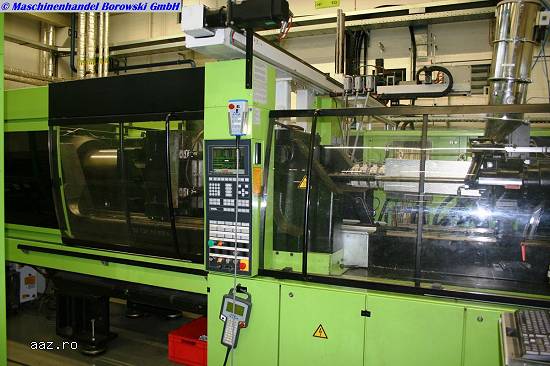

Vand masina de injectat mase plastice Engel ES 750-275 HL-V EC100 A03

machine-no.: 501996
  manufacturer: ENGEL
  Typ: ES 750-275 HL-V EC100 A03
  year of construction: 2001
  operating hours: 60024 h

  type of drive: 2
  clamping type: 5
  method of construction: 8
  clamping force: 2750 kN
  size of mould plates h: 1050 mm
  size of mould plates v: 650 mm
  min. mould height: 350 mm
  opening stroke: 850 mm
  ejector stroke: 200 mm
  ejector force: 83 kN
  centring device diameter of moving platen: 15 mm
  threaded hole of platen: 45


  screw diameter: 45 mm
  swebt volume: 318 ccm
  injection pressure: 1706 bar
  screw length: 20 mm
  screw geometry: 9
  screw rotation: 230 min
  injection rate into the open: 230 g/s PS
  number of heating zones: 5
  nozzle contact force: 67 kN
  nozzle stroke: 350 mm

  measures of machine lxbxh: 6.6m x 1.99m x 2.46m
  total weight: 20000KG
  •
  • Anti vibration mounts
  • core pulling hydr. 2x
  • electric interface for handling units according to Euromap 12
  • machine incl. safety fencing
  • air valve 2x
  • Schuko-socket 10A
  • CEE-socket 16A
  • CEE-socket 32A
  • machine without material hopper
  • machine incl. water flow regulator
  • screen text german
  • machine incl. Handling

  Maschinenhandel Borowski GmbH, Germany
  *****
