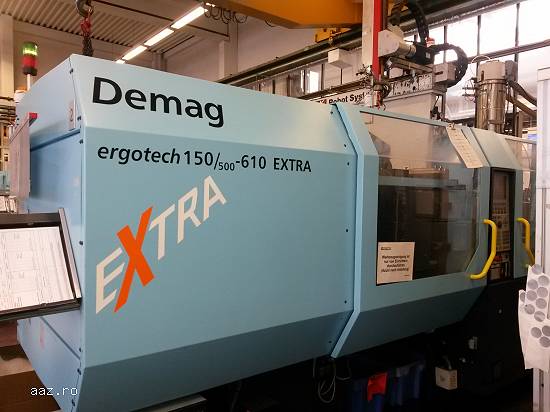

Vand masina de injectat mase plastice Demag ERGOtech 150-500-610 EXTRA

machine-no.: 502019
  manufacturer: DEMAG
  Typ: ERGOtech 150-500-610 EXTRA
  year of construction: 2001
  operating hours: 62084 h

  type of drive: vollhydraulisch
  clamping type: Vollhydraulik
  method of construction: vierholmig
  clamping force: 1500 kN
  distance between tie bars h: 500 mm
  distance between tie bars v: 500 mm
  size of mould plates h: 750 mm
  size of mould plates v: 750 mm
  min. mould height: 250 mm
  opening stroke: 500 mm
  ejector stroke: 160 mm
  ejector force: 59 kN
  centring device diameter of moving platen: 160 mm
  centring device diameter of fixed platen: 160


  screw diameter: 50 mm
  swebt volume: 399 ccm
  injection pressure: 1598 bar
  screw length: 20 mm
  screw geometry: 9
  screw stroke: 203 mm
  screw rotation: 296 min
  plasticising rate: 44 g/s PS
  number of heating zones: 5
  nozzle contact force: 80 kN
  nozzle stroke:

  measures of machine lxbxh: 5.45m x 1.63m x 2.1m
  total weight: 7500KG
  • machine incl. safety fencing
  • machine incl. Handling
  • machine incl. belt conveyor
  • Anti vibration mounts
  • machine without material hopper
  • machine incl. water flow regulator
  • screen text german
  • air valve fixed WAP
  • core pulling hydr. 1x
  Maschinenhandel Borowski GmbH, Germany
  *****
