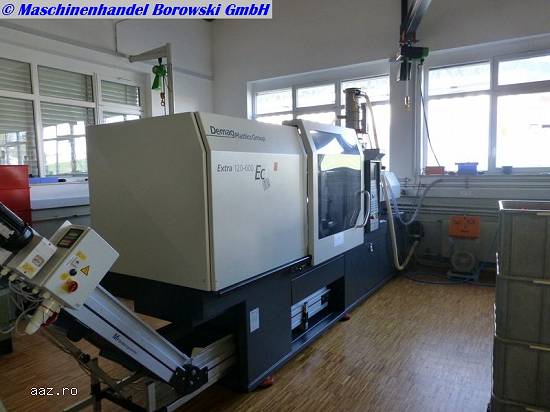

Vand masina de injectat mase plastice Demag ERGOtech 120-600 Extra

machine-no.: 502023
  manufacturer: DEMAG
  Typ: ERGOtech 120-600 Extra
  year of construction: 2006
  operating hours: 25636 h

  type of drive: vollhydraulisch
  clamping type: Vollhydraulik
  method of construction: vierholmig
  clamping force: 1200 kN
  distance between tie bars h: 470 mm
  distance between tie bars v: 470 mm
  size of mould plates h: 670 mm
  size of mould plates v: 670 mm
  min. mould height: 250 mm
  opening stroke: 600 mm
  ejector stroke: 150 mm
  ejector force: 41 kN
  centring device diameter of moving platen: 125 mm
  centring device diameter of fixed platen: 125 mm
  mould weight: 700 kg


  screw diameter: 45 mm
  swebt volume: 322 ccm
  injection pressure: 1910 bar
  screw length: 20 mm
  screw geometry: 9
  screw stroke: 203 mm
  plasticising rate: 23 g/s PS
  injection rate into the open: 170 g/s PS
  number of heating zones: 5
  nozzle contact force: 60 kN
  nozzle stroke: 300 mm

  measures of machine lxbxh: 4.6m x 1.5m x 2m
  total weight: 5600KG
  • Anti vibration mounts
  • machine without material hopper
  • machine incl. water flow regulator
  • core pulling hydraulically 1x
  • incl. Spruepicker
  • screen text german
  Maschinenhandel Borowski GmbH, Germany
  *****
