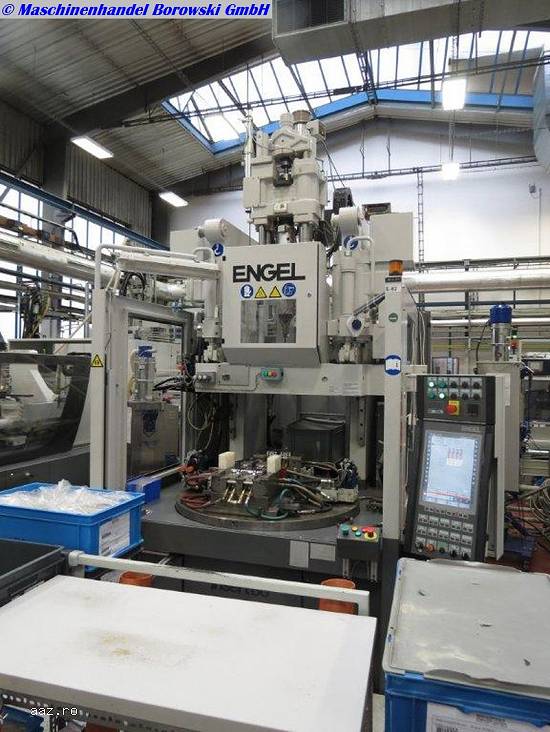

Vand masina de injectat mase plastice Engel insert 330V-80 CC 200 A02

machine-no.: 502036
  manufacturer: ENGEL
  Typ: insert 330V-80 CC 200 A02
  year of construction: 2009

  type of drive: vollhydraulisch
  clamping type: Vollhydraulik
  method of construction: holmlos
  clamping force: 800 kN
  min. mould height: 350 mm
  opening stroke: 350 mm
  size of round table: 1200 mm
  ejector stroke: 105 mm
  ejector force: 20 kN
  mould weight: 2100 kg

  screw diameter: 30 mm
  swept volume: 113 ccm
  injection pressure: 2180 bar
  screw length: 24 mm
  screw geometry: 9
  screw stroke: 160 mm
  screw rotation: 400 min
  plasticising rate: 14 g/s PS
  number of heating zones: 4
  nozzle contact force: 49 kN
  nozzle stroke: 300 mm
  measures of machine lxbxh: 2.6m x 1.9m x 3.8m
  total weight: 9400KG
  • CEE-socket 16A
  • interface for ejector plates safety
  • machine without material hopper
  • Schuko-socket 10A
  • Anti vibration mounts
  • mould heating 4x
  • rotary table
  • core pulling hydraulically 4x
  • screen text german
  • machine incl. water flow regulator
  • Screen text czech
  Maschinenhandel Borowski GmbH, Germany
  *****
