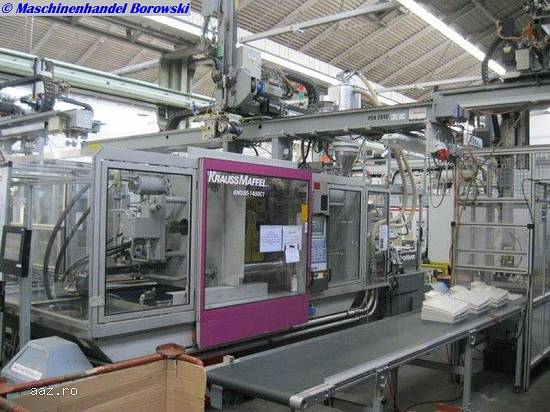

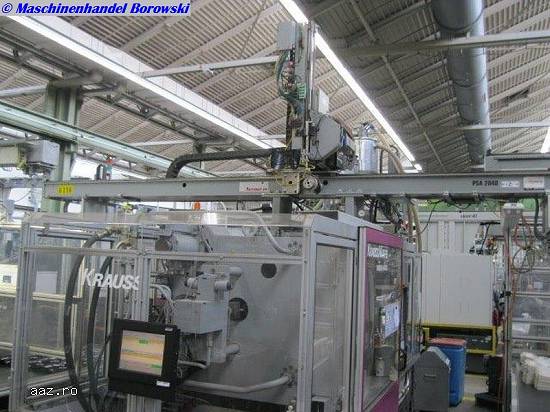

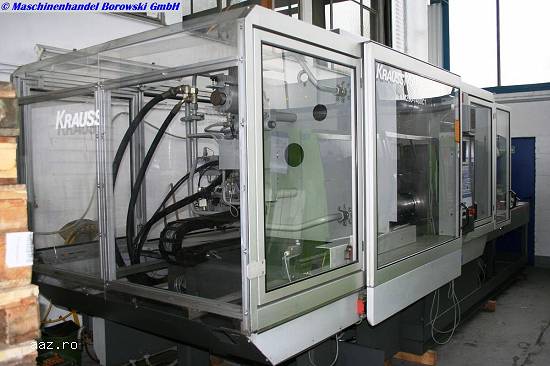

Vand masina de injectat mase plastice Krauss Maffei KM 250-1400 C1 MC3F

characteristics:
  ________________________________________
  machine-no.: 501825
  manufacturer: KRAUSS MAFFEI
  Typ: KM 250-1400 C1 MC3F
  year of construction: 1999

  clamping unit:
  ________________________________________
  clamping force: 2500 kN
  distance between tie bars h: 630 mm
  distance between tie bars v: 630 mm
  size of mould plates h: 1030 mm
  size of mould plates v: 995 mm
  min. mould height: 480 mm
  opening stroke: 820 mm
  max. opening daylight: 1300 mm


  injection unit:
  ________________________________________
  screw diameter 60 mm
  injection pressure: 2000 bar
  shot volume: 679 ccm
  measures and weight:
  ________________________________________
  measures of machine lxbxh: 6.2m x 1.95m x 2.39m
  total weight: 12500KG

  equipment:
  ________________________________________
  air valve 2x
  machine incl. water flow regulator
  machine without material hopper
  machine incl. Handling
  Anit vibration mounts
  interface for handling
  Schuko-socket 10A
  Tie-bar pulling device automatic
  CEE-socket 32A
  screen text german
  core pulling hydr. 4x
  CEE-socket 16A
  Maschinenhandel Borowski GmbH, Germany
  *****
