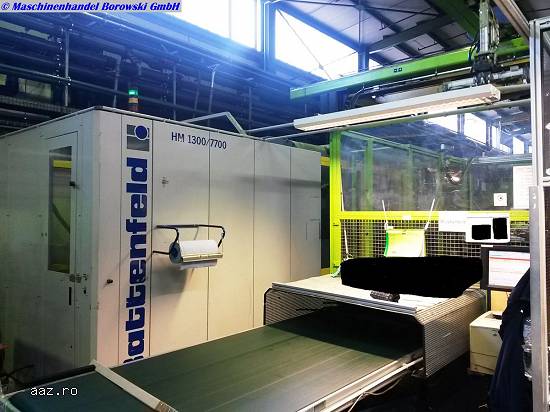

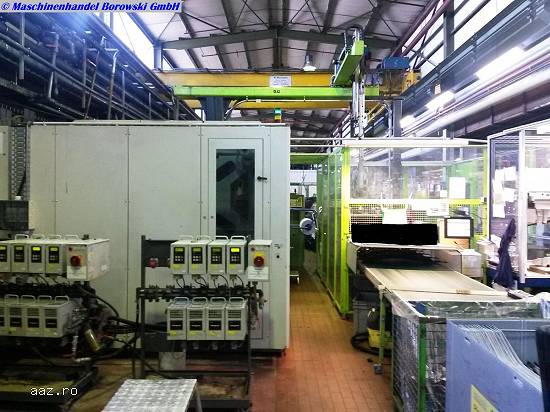

Vand masina de injectat mase plastice Battenfeld HM 13000 2P - 7700

machine-no.: 502077
  manufacturer: BATTENFELD
  Typ: HM 13000 2P - 7700
  year of construction: 2005
  operating hours: 26600 h

  type of drive: fully hydraulically
  clamping type: fully hydraulic
  method of construction: four tie bars
  clamping force: 13000 kN
  distance between tie bars h: 1600 mm
  distance between tie bars v: 1250 mm
  size of mould plates h: 2220 mm
  size of mould plates v: 1880 mm
  min. mould height: 650 mm
  max. mould height: 1400 mm
  opening stroke: 1680 mm
  ejector stroke: 300 mm
  ejector force: 117 kN
  centring device diameter of moving platen: 250 mm
  centring device diameter of fixed platen:

  screw diameter: 75 mm
  swept volume: 1878 ccm
  injection pressure: 2389 bar
  screw length: 22 mm
  screw geometry: 9
  screw stroke: 500 mm
  screw rotation: 180 min
  screw torque: 7480 N
  plasticising rate: 92 g/s PS
  injection rate into the open: 644 g/s PS
  number of heating zones: 8
  nozzle contact force: 226 kN
  nozzle stroke: 700 mm

  measures of machine lxbxh: 11m x 3.37m x 2.8m
  total weight: 68500KG

  • screen text german
  • CEE-socket 16A
  • cascade control uni -interface 6x
  • Schuko-socket 10A
  • machine incl. safety fencing
  • machine without material hopper
  • Anti vibration mounts
  • interface for handling
  • machine incl. Handling
  • core pulling hydraulically 4x
  Maschinenhandel Borowski GmbH, Germany
