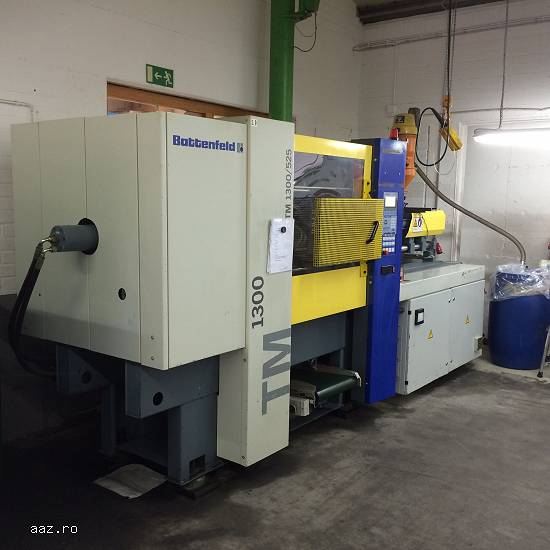

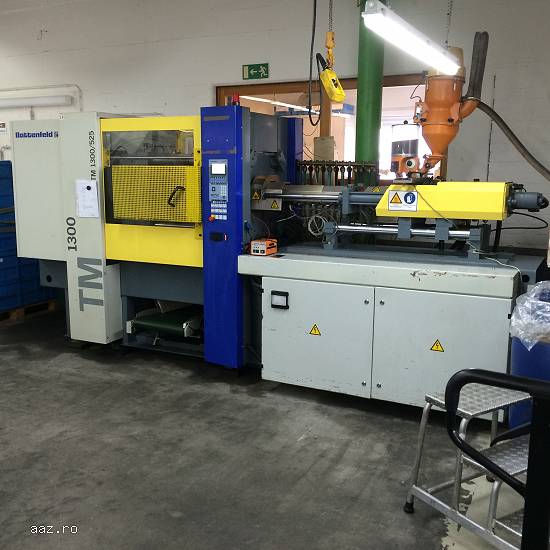

Vand masina de injectat mase plastice Battenfeld TM 1300-525 Unilog B2

machine-no.: 502078
  manufacturer: BATTENFELD
  Typ: TM 1300-525 UNILOG B2
  year of construction: 2000
  operating hours: 51055 h

  type of drive: fully hydraulically
  clamping type: toggle
  method of construction: four tie bars
  clamping force: 1300 kN
  distance between tie bars h: 470 mm
  distance between tie bars v: 470 mm
  size of mould plates h: 670 mm
  size of mould plates v: 670 mm
  min. mould height: 225 mm
  max. mould height: 500 mm
  opening stroke: 430 mm
  ejector stroke: 140 mm
  ejector force: 26 kN
  centring device diameter of moving platen: 125 mm
  centring device diameter of fixed platen: 125 mm


  screw diameter: 45 mm
  swept volume: 251 ccm
  injection pressure: 1659 bar
  screw length: 22 mm
  screw geometry: 9
  screw stroke: 200 mm
  screw rotation: 318 min
  screw torque: 770 N
  plasticising rate: 38 g/s PS
  injection rate into the open: 167 g/s PS
  number of heating zones: 4
  nozzle contact force: 86 kN
  nozzle stroke: 350 mm


  measures of machine lxbxh: 4.66m x 1.33m x 2.01m
  total weight: 4800KG

  • Schuko-socket 10A
  • air valve fixed WAP
  • machine incl. water flow regulator
  • machine without material hopper
  • screen text german
  • CEE-socket 16A
  • core pulling hydraulically 1x
  • Anti vibration mounts
  Maschinenhandel Borowski GmbH, Germany
  *****
